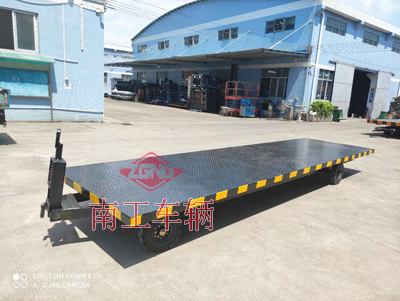

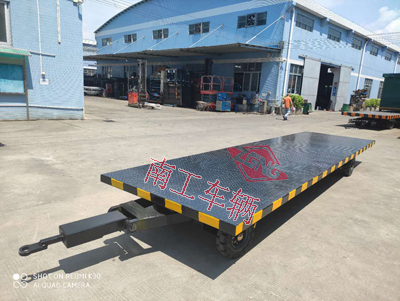

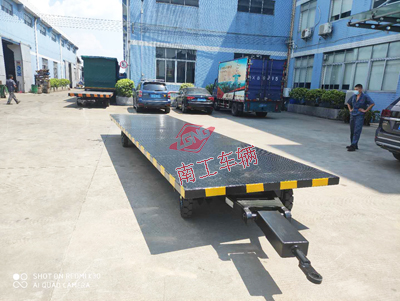

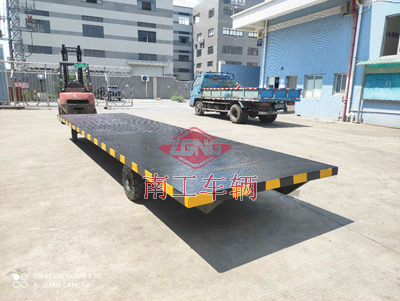

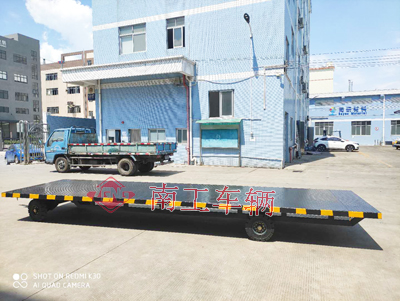

Brand: Nangong, model: PT02A-17W65L-4S, load capacity: 2 tons, table size: 6.5 * 1.7 meters, net weight: 1360KG, color: black;

Detailed parameters of a 2-ton flatbed trailer:

1. Load capacity: 2 tons, flat plate size: 1700 * 6500MM, main beam is of 8 # steel structure, surface welded with 4mm patterned plate, height about 600MM;

2. The tires are four types of 500-8 solid tires, with a single wheel load of 1.2 tons and a speed of 15km/h;

3. The rotary mechanism is a 3-ton standard assembly that can rotate 180 degrees;

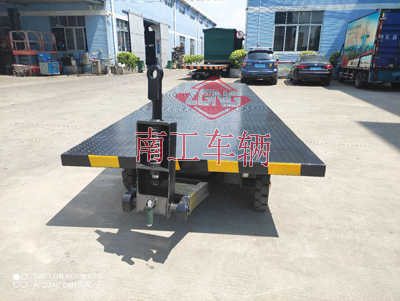

4. Equipped with a 3-ton standard traction frame, the traction mechanism can be adjusted and fixed up and down, and different vehicle models only need simple adjustment for traction;

5. Suspended frame, with a small turning radius of 180 degrees and turning in place;

6. Equipped with 3 hooks on one side, and equipped with a dedicated connector and plug each when shipped;

7. Color: matte black, surrounded by orange warning stripes.

2 ton flatbed trailer without power traction tool trailer manufactured by Nangong Vehicle, with features such as long design service life, simple operation, safety and durability, and fast delivery.

Application: Used for short distance turnover in light industries such as small household appliances, hardware, furniture, printing, etc.
