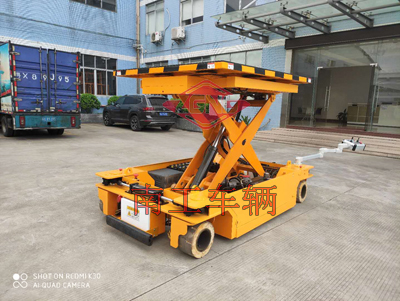

Brand: Nangong, model: NGLPA020-21/15-006S, load capacity: 2 tons, self weight: 2.56 tons, table size: 2.1 * 1.55 meters, color: engineering yellow;

Detailed parameters of a 2-ton remote control self-propelled lifting platform:

1. The design load of the electric hydraulic self-propelled lifting platform is 2 tons, and the vehicle body is welded with steel structure. All main structural materials are Q235 grade strength steel, with a width of 1.55 meters, a length of 2.1 meters, and a height of 0.6 meters. The table top is paved with a 4mm patterned plate, and a surface is added with a 10mm rubber plate; The platform can achieve left and right movement and rotation swing functions, with a stroke of ± 200MM and a manual fine adjustment accuracy of ± 0.5MM;

2. The transportation speed is adjustable from 0 to 10KM/H, with a large independent translation amount of ± 200MM along the X-axis direction, a large independent translation amount of ± 200MM along the Y-axis direction, and a large lifting height of 2 meters along the Z-axis direction. The lifting speed is adjustable from 0 to 0.5M/s;

3. The functions of lifting, walking, and moving are equipped with imported hydraulic components, and the control function is operated remotely using a joystick. The operation is simple and flexible, and the overall structure design of this platform is scientific and reasonable, with a beautiful appearance;

4. Chassis: The product chassis has four-way walking, hydraulic lifting, and the working platform has four-way fine adjustment, with fine workmanship and simple operation;

5. The four wheels use 13.1/2 * 7.1/2 * 8 Double Happiness HAPPYA maintenance free and environmentally friendly solid tires;

6. Equipped with 4 sets of hydraulic drive wheels with a travel speed of 0-10kM/H, all four wheels can turn, and the steering angle is positive or negative 90 degrees. The hydraulic motor adopts the imported brand "White" from the United States;

7. The platform can be lifted and lowered, with a maximum ground clearance of 2 meters and a minimum ground clearance of 0.6 meters when the upper plane of the platform is raised. All oil cylinders are self-made by Nangong, and hydraulic seals are made of imported brand NOK from Japan;

8. The control system adopts American Curtis controller, equipped with Siemens PLC;

9. The hydraulic system of this vehicle adopts a 48V 3KW equipped with 6 sets of 6R hydraulic pumps, and a low-voltage DC power unit motor;

10. The battery shall be a 48V 200A lead-acid battery with a service life of not less than 5 years, and the battery brand shall be a good German brand;

11. Equipped with a set of 48V 40A or 60A intelligent charger, fully equipped with automatic power outage protection, and the charger brand adopts Shanghai Shineng (car mounted);

Safe and stable, supporting non-standard customization, modern high-altitude operation mobile tool vehicle, automatic, easy to operate, stable lifting, cargo lifting equipment,

The self-propelled hydraulic lifting platform has walking and lifting functions, and the walking direction is remotely controlled by a joystick. The walking speed can be adjusted and equipped with a braking device. The platform can continuously complete tasks such as up and down, forward, backward, and turning, and the working stroke can be customized.

The 2-ton remote control self-propelled lifting platform is non-standard customized by Nangong and has a self-propelled function. It can walk, reverse, and turn freely without the need for external power supply or power traction during operation. Flexible movement, easy operation, and easy lifting and lowering, one person operation is sufficient.

Application: The lifting platform is widely used for vertical transportation of goods between high-rise buildings, building maintenance, etc.
