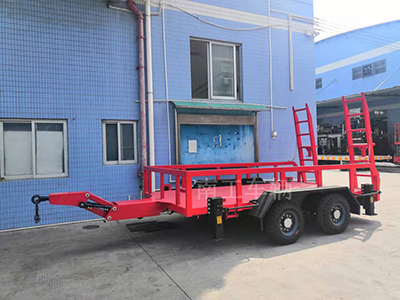

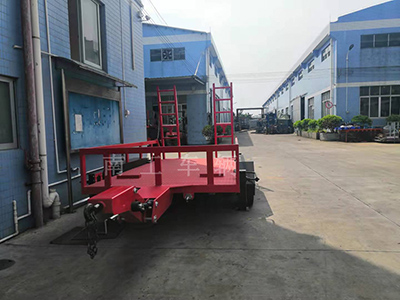

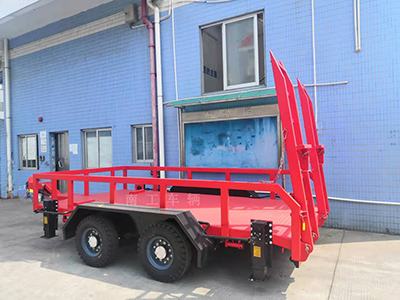

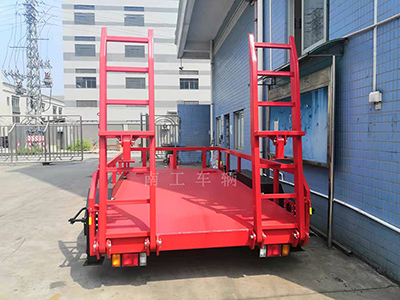

Foshan 8T fire truck trailer ATV full trailer

name:Foshan 8T fire truck trailer ATV full trailer

detailed information息

Brand: Nangong, model: PT08-20W40L-4S, load capacity: 8 tons, board size: 4 * 2 meters, net weight: 1.4 tons, color: red;

1. The trailer has a load capacity of 8T, and the platform is welded with 8 # steel structure, with a table size of 4 meters. 2 meters wide, with a platform height of approximately 0.6 meters, and a 4mm thick patterned plate laid on the surface. The front, left, and right sides of the vehicle body are equipped with guardrails, with a guardrail height of approximately 0.3 meters;

2. The tires are four 700-12 air tires with a single wheel load of 2.3T and leaf spring suspension;

3. Two 0.35-meter No.8 channel steels are welded above the vehicle body for equipment positioning, with both ends sealed tightly;

4. Install a universal wheel support leg (double wheel) at the traction frame to adjust the height;

5. Height adjustable with traction frame buffering function, with two 5T manual mechanical support legs on both sides of the vehicle body;

6. The rear of the vehicle is equipped with a manual flipping boarding bridge, welded with 10mm diameter threaded steel, three hooks on one side, and a rope tensioner;

7. Color: Fire red, mudguard black.

The quality of the medium-sized fire truck trailer produced by Foshan Nangong Vehicles is stable and reliable, and this product can be customized for non-standard design according to customer requirements.

Application: This trailer is suitable for transportation and turnover in industries such as airport gifts, fire robots, hardware machinery, generator equipment, etc.
