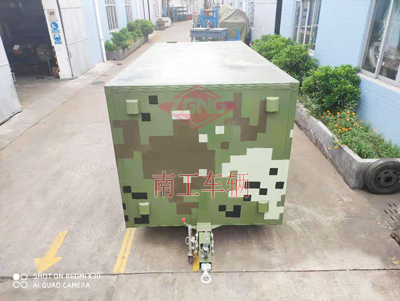

Brand: Nangong, model: 08TT02VBSYM-27/61-4H, load capacity: 2 tons, table size: 6.1 * 2.7 meters, net weight: 2 tons, color: camouflage;

2 ton robot box tool trailer with hydraulic lifting tailboard detailed parameters:

1. The entire vehicle has a load capacity of 2 tons, and the box is designed with front and rear partitions. The specific internal dimensions are: the front section is 1.65 meters long, the rear section is 2.8 meters long, and the external dimensions are about long × wide × Height: 6100 × two thousand and seven hundred × 2377mm, tailgate width 2000mm.

2. The carriage adopts a skeleton structure, with aluminum honeycomb panels assembled on the exterior and aluminum alloy profiles used for the corners. The front section of the car is divided into two spaces on the left and right, with a diesel engine installed in the left space and an operation console (refer to the schematic diagram) and two seats installed in the right space. A floor hook is installed in the rear section of the carriage to fix the robot, and a five hole exposed socket is installed.

3. The chassis is equipped with 4 195/70R15 pneumatic tires, with a speed of 60km/h.

4. Four torsion shafts are installed at the bottom for shock absorption, LED lights (non power reflective taillights) are installed at the rear of the carriage, and lighting lights (AC220V) are installed inside the carriage.

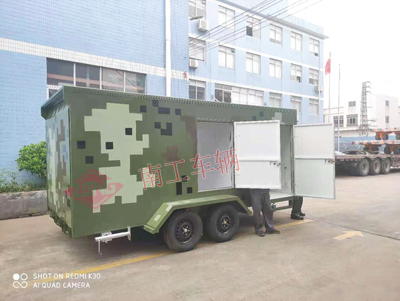

5. Two single door openings are designed on both sides of the carriage. The single door openings for the seat compartment and diesel engine compartment need to be equipped with quick fixing mechanisms for fixing after the doors are opened.

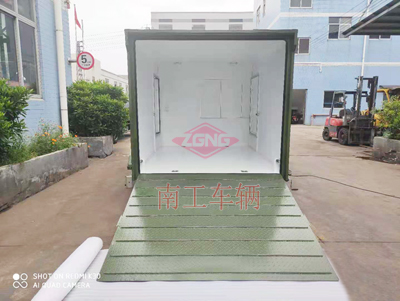

6. The rear of the carriage is equipped with a hydraulic flip door and a remote control, which can achieve local and remote control. The operation buttons are marked with operation indicators. After flipping down the tailgate, it can be used as a boarding bridge, and when closed, it can be used as a carriage door. The tailgate bears a weight of 1.5 tons and is equipped with anti slip strips on the surface, making it easy for robots to climb the bridge.

7. All door locks are fixed with screws,

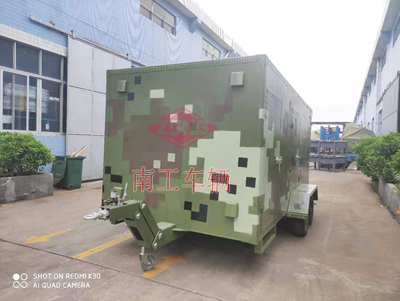

8. The height of the traction frame can be adjusted (600-800mm), equipped with a collision brake traction ring, and one set of universal wheel support legs on one side of the traction rod. It can be lifted and retracted by rotating during driving.

9. The power supply of the hydraulic power unit adopts 220V.

10. Reserved wiring slot installation holes inside the carriage.

11. Install waterproof ventilation nets in the diesel engine compartment and seat compartment, and the exhaust emissions from the diesel engine are led to the bottom of the carriage through hard pipes.

12. Reserved mains interface.

13. The operating platform inside the seat compartment is designed by the purchaser and produced and processed by the supplier.

14. Place a 30L oil drum storage cabinet at the front of the carriage.

15. The rear of the carriage is equipped with 2 manual legs.

16. Leave an antenna installation base at the top (we will provide the specific installation location and size).

17. The vehicle color is camouflage.
